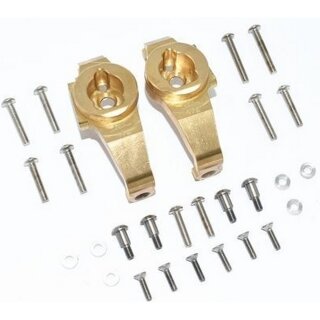

Accessories:
C-Hub-2pcs
King Pin-4pcs
Stainless Steel Flat Head Screws 2.5x10-6pcs
Stainless Steel Round Head Screws 3x14-2pcs
Stainless Steel Round Head Screws 3x16-2pcs
Stainless Steel Round Head Screws 3x18-4pcs
Stainless Steel Round Head Screws 3x20-2pcs
Aluminum Collar 3x6x2-6pcs
Original Name / Part No:
8232
Part location :
In between front gear box and front knuckle arms
Does this product replace a specific part or function?
Yes
Product major functions & usage:
1. To connect the front gear box and knuckle arm in union with the entire steering assembly
2. Adjust and fix the height and angle of the damper
Is this part adjustable? If yes … how and why/purpose?
How: Fix the bottom of damper on different positioning holes
Purpose: Adjust the height and angle of the damper
Major advantages of upgrading to this part/product :
1. Made with a good quality brass for great durability.Can be used as external weight for the vehicle (49g per piece).
2. Delrin collars are designed and installed by hand to minimize the gap, the handling performance is top rated and in harmony with the rest of the vehicle.
3. Stainless steel king pins are provided for a stable and smooth experience compare with the original plastic set.
4. The position of dampers are modified after the installation of this product. Original installation: the dampers sit in a vertical position. Modified installation: the dampers sit slightly outward. This is to enhance the stability of the vehicle and allow adjustment on the height of dampers.
Other special notes and comments :
1. Use round head screws 3x18 (2pcs) to assemble the tie rods, this will change of installation from original tie rod connects with dampers.
2. Installing dampers:
Without collar - use 3x14 screws. 1 collar - use 3x16 screws. 2 collars - use 3x18 screws. 3 collars - use 3x20 screws.
Suitable Model:
TRAXXAS-1/10 TRX4 DEFENDER TRAIL CRAWLER
TRAXXAS-1/10 TRX4 TACTICAL UNIT-82066-4
TRAXXAS-1/10 TRX4 FORD BRONCO 82046-4
TRAXXAS-1/10 TRX-4 BLAZER 82076-4
TRAXXAS-1/10 TRX-4 MERCEDES-BENZ G500
TRAXXAS-1/10 TRX-6 MERCEDES-BENZ-88096-4
